Toe-in:
      Inspection STD:  5 � 1 mm (0.20 � 0.04 in.)

If not within specification, inspect and replace any damaged or worn rear suspension parts.

HINT:   After replacing damaged or worn suspension parts, measure the toe-in following (b), (c), (d) and (e) above. If toe-in is still not within standard, adjust the toe-in.

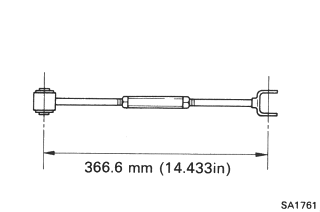

(a)  Measure the lengths of the left and right suspension arms to see if the lengths are equal.

If not equal, adjust following the procedures below.

• If the toe-in is less than standard, adjust the length of the shorter arm by the tie rod tube.
• If the toe-in is greater than standard, adjust the length of the longer arm by the tie rod tube.

Toe-in:
      Adjustment STD:  5 � 1 mm (0.20 � 0.04 in.)

(d)  Tighten the nuts.
(e)  After toe-in adjustment.

Follow the specific instructions of the equipment manufacturer.
