1. MAKE FOLLOWING CHECKS AND CORRECT ANY PROBLEMS
(a) Check the tires for wear, size and proper inflation pressure.
Cold tire inflation pressure:
kg/cm2 (psi, kPa) |
| Engine type | Tire size | Tire pressure |
5S-FE |
195/60HR14 (Front) | 2.0 (29, 200) |
| 205/60HR14 (Rear) | 2.3 (33, 225) | |
3S-GTE |
195/60VR14 (Front) | 2.0 (29, 200) |
| 205/60VR14 (Rear) | 2.3 (33, 225) |
(b) Check the wheel runout.
(c) Check the front wheel bearings for looseness.
(d) Check the front suspension for looseness.
(e) Check the steering linkage for looseness.
(f) Check the ball joint for excessive looseness.
(g) Check that the front shock absorber work properly by using the standard bounce test.
Vehicle height:
Front 224 mm (8.82 in.)
Rear 203 mm (7.99 in.)
HINT:
- Measuring point

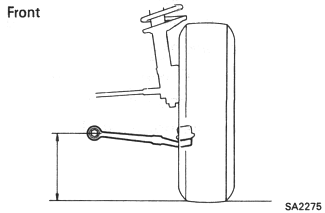

Front - Measure from the ground to the center of the lower suspension arm mounting bolt.
Rear - Measure from the ground to the center of the body side Rear suspension No.1 mounting bolt. - Before inspecting the wheel alignment, adjust the chassis ground clearance to specification.
If the clearance of the vehicle is not standard, try to adjust it by pushing down in the body or by lifting the body. If still not correct, check for bad springs or suspension parts.
